2 Phase AC Current Transducer Model:GS-AI2B1-xxEC

Product Details:

Material ABS (flame retardancy)
Application measuring current
Usage measuring current
Dimension (L*W*H) 116*25*87 Millimeter (mm)
Product Type AC current transducer
Output Analog Sensor,
Theory Current Sensor,
Share Your Product:

Get a Price/Quote

Request To Call Back Send Inquiry

2 Phase AC Current Transducer Model:GS-AI2B1-xxEC Price And Quantity

Minimum Order Quantity 1 Unit

2 Phase AC Current Transducer Model:GS-AI2B1-xxEC Product Specifications

Output Analog Sensor
Usage measuring current
Type AC Current Transducer
Application measuring current
Material ABS (flame retardancy)
Theory Current Sensor
Product Type AC current transducer
Accuracy 0.5 %
Dimension (L*W*H) 116*25*87 Millimeter (mm)

2 Phase AC Current Transducer Model:GS-AI2B1-xxEC Trade Information

FOB Port Shenzhen
Payment Terms Telegraphic Transfer (T/T), Western Union, Paypal, Letter of Credit at Sight (Sight L/C),
Supply Ability 50000 Unit Per Month
Delivery Time 2-3 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy,
Main Export Market(s) Western Europe, Asia, Australia, North America, Eastern Europe, Middle East, Central America, South America,
Main Domestic Market All India,
Certifications ISO, CE, ROHS

Product Description

GS-AI2B1-xxEC series is 2phase AC current transducer that detects AC current in live wires and generates signals proportional to the input current. The generated signals can be 0-5V DC,0-10V DC,0-20mA DC,or 4-20mA DC for output. The generated signal can be connected to PLC,ammeter or industrial automation control system;The current input methold is by hole-thru.

Accuracy:0.5%;

Input:0-30A AC;

Output:0-5V DC,0-10V DC,0-20mA DC,4-20mA DC;

Power supply:12V DC,15V DC,24V DC;

For more details,please visit our website below

https://syncmeter.com/products/ac_current_transducer/double_phase/54.html

Other Products in 'AC Current Transducer' category

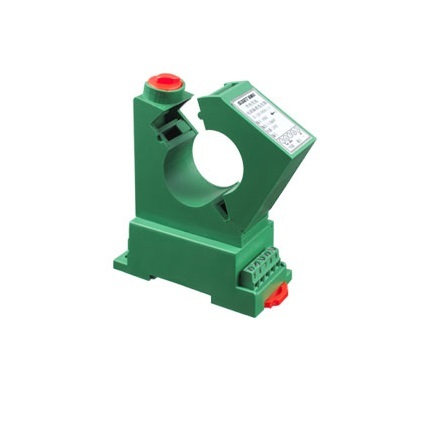

Split Core Single Phase AC Current Transducer GS-AI1B1-xxPC Minimum Order Quantity : 1 Type : AC Current Transducer Application : measuring current Output : Analog Sensor Accuracy : 0.5 % Usage : measuring current Material : ABS( flame retardancy) Theory : Current Sensor Dimension (L*W*H) : 83*100*36 Millimeter (mm) Product Type : AC current transducer

Send Inquiry

Single Phase AC Current Transducer Model GS-AI1B1-xxSC Minimum Order Quantity : 1 Type : AC Current Transducer Application : measuring current Output : Analog Sensor Accuracy : 0.5 % Material : ABS (flame retardancy) Theory : Current Sensor Dimension (L*W*H) : 87*25*42 Millimeter (mm) Product Type : ac current transducer Operating Temperature : 20℃～+60 Celsius (oC)

Send Inquiry

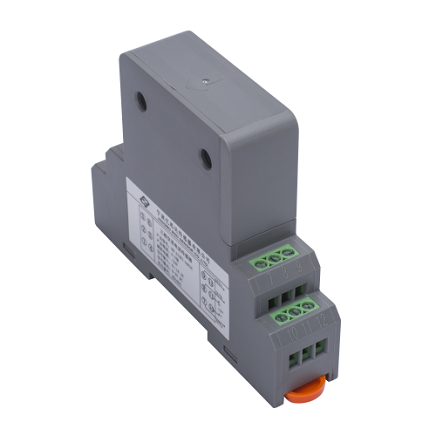

Two Phase AC Current Tracing Transducer Minimum Order Quantity : 1 Type : tracing transducer Application : signal tracing Output : Analog Sensor Accuracy : 0.5 % Usage : signal tracing Material : ABS flame retardant Product Type : tracing transducer Operating Temperature : 2060 Celsius (oC)

Send Inquiry

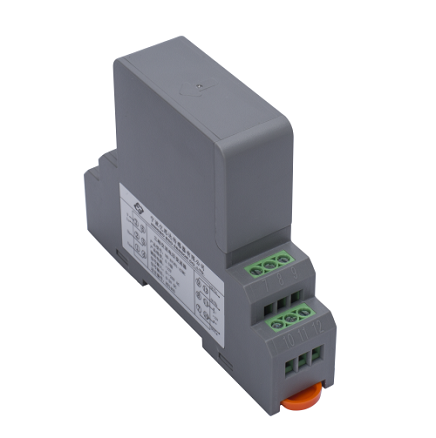

2 Phase AC Current Transducer Model:GS-AI2B1-xxMC Minimum Order Quantity : 1 Type : AC Current Transducer Application : measuring current Output : Analog Sensor Accuracy : 0.5 % Usage : measuring current Material : ABS Flame retardancy Theory : Current Sensor Dimension (L*W*H) : 116*25*87 Millimeter (mm)
