Bi-directional DC Voltage Transducer GS-DV1B4-xxMB

Product Details:

Product Type DC Voltage Transducer
Application measuring DC voltage bidirectionally
Usage measuring DC voltage bideirectionally
Dimension (L*W*H) 116*25*87 Millimeter (mm)
Output Analog Sensor,
Type DC Voltage Transducer
Accuracy 0.2 %
Share Your Product:

19-95 USD ($)/Unit

Get a Price/Quote

Request To Call Back Send Inquiry

Bi-directional DC Voltage Transducer GS-DV1B4-xxMB Price And Quantity

Minimum Order Quantity 5000 Unit
Price 19-95 USD ($)/Unit

Bi-directional DC Voltage Transducer GS-DV1B4-xxMB Product Specifications

Usage measuring DC voltage bideirectionally
Dimension (L*W*H) 116*25*87 Millimeter (mm)
Output Analog Sensor
Operating Temperature -20-60 Celsius (oC)
Accuracy 0.2 %
Product Type DC Voltage Transducer
Type DC Voltage Transducer
Application measuring DC voltage bidirectionally

Bi-directional DC Voltage Transducer GS-DV1B4-xxMB Trade Information

FOB Port Shenzhen
Payment Terms Telegraphic Transfer (T/T), Western Union, Paypal, Letter of Credit at Sight (Sight L/C),
Supply Ability 50000 Unit Per Month
Delivery Time 2-3 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy,
Main Export Market(s) Western Europe, Asia, Australia, North America, Eastern Europe, Middle East, Central America, South America,
Main Domestic Market All India,
Certifications CE, ROHS, ISO

Product Description

BiDirectional DC Voltage Transducer Model GSDV1B4xxMB

Overview GSDV1B4xxMB series is a bidirectional DC voltage transducer that measures DC voltage in a wire in DC electrical system and then generates signal that is proportional to that measured voltageThe measured DC voltage can be bidirectional and the generated bidirectional signal can be 05V DC 25V25V DC12mA8mA DC10mA10mA DC etc These signals can be used to display the measured voltage in a voltmeter or collected for further analysis in a data acquisition system or connected to PLC for the purpose of monitoring and control

Accuracy02

Input range75mV1000V DC

Output05V DC 25V25V DC12mA8mA DC10mA10mA DC

Power supply12VDC15VDC24VDC

For more details of this DC voltage transducer please visit the product link below

httpssyncmetercomproductsdc_voltage_transducerBipolar86html

Other Products in 'DC Voltage Transducer' category

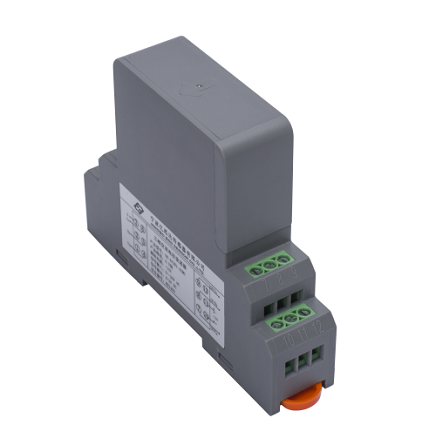

Bi-Directional DC Voltage Transducer GS-DV1C4-x9MB Minimum Order Quantity : 20000 Dimension (L*W*H) : 116*25*87 Millimeter (mm) Usage : measuring DC voltage Bidirectionally Type : Bidirectional DC Voltage Transducer Application : measuring DC voltage bidirectionally Output : Analog Sensor Accuracy : 0.2 % Product Type : Bidirectional DC Voltage Transducer
