Single Phase DC Current Transducer with Relay Signal Output GS-DI1C0-JxKC

Product Details:

Material ABS,flame retardant
Application alarming
Usage alarming
Dimension (L*W*H) 116*25*87 Millimeter (mm)
Output Digital Sensor,
Theory Current Sensor,
Type Current transducer with relay
Share Your Product:

Get a Price/Quote

Request To Call Back Send Inquiry

Single Phase DC Current Transducer with Relay Signal Output GS-DI1C0-JxKC Price And Quantity

Minimum Order Quantity 1 Unit

Single Phase DC Current Transducer with Relay Signal Output GS-DI1C0-JxKC Product Specifications

Theory Current Sensor
Dimension (L*W*H) 116*25*87 Millimeter (mm)
Usage alarming
Material ABS,flame retardant
Type Current transducer with relay
Output Digital Sensor
Accuracy 0.5 %
Application alarming

Single Phase DC Current Transducer with Relay Signal Output GS-DI1C0-JxKC Trade Information

Payment Terms Western Union, Paypal, Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T),
Supply Ability 50000 Unit Per Month
Delivery Time 2-3 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy,
Main Export Market(s) Western Europe, Australia, South America, Central America, Asia, Africa,
Main Domestic Market All India,
Certifications CE,ROHS

Product Description

Single Phase DC Current Transducer with Relay Signal Output Model:GS-DI1C0-JxKC

Overview

GS-DI1C0-JxKC series is a single phase DC Current transducer with relay signal output. This DC current transducer adopts a special isolation module to monitor in real time the AC current in the power grid or circuit. When the DC current exceeds the set upper limit value or lower limit value, it will output the over limit alarm signal or under limit alarm signal, and the output signal is the relay contact signal. Within the input range, the action limit value of DC current can be set arbitrarily.

The input and output of this transducer are completely isolated, with the characteristics of high precision, high isolation and low thermal drift. It can be applied to motor overload monitoring, power loss detection, action verification, signal isolation conversion and many other occasions.

Accuracy:0.5%

Input range:AC 10A-600A

Output:Relay (switch)

Power supply:12V DC 24V DC;

For more details of this transducer please visit out website

http://syncmeter.com/products/Transducer_with_Switch__Relay_/Current_In/116.html

Other Products in 'Switch (Relay)Transducer' category

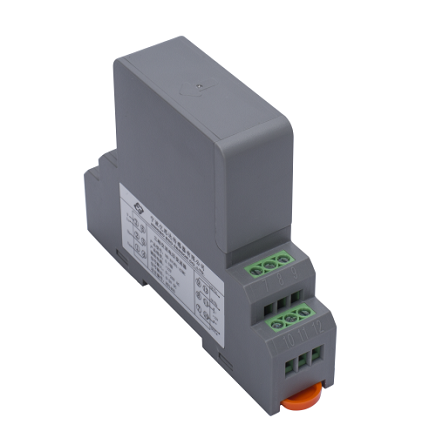

3Phase 3Wire AC Voltage Transducer with Relay Signal Output GS-AV3C1-JxMC Minimum Order Quantity : 1 Accuracy : 0.5 % Output : Switching Transducer Application : alarm Type : Switching transducer Usage : alarm Product Type : switching transducer Material : ABS Flame retardant Dimension (L*W*H) : 116*25*87 Millimeter (mm) Operating Temperature : 2060 Celsius (oC)

Send Inquiry

Single Phase DC Voltage Transducer with Relay Signal Output GS-DV1C0-JxMC Minimum Order Quantity : 1 Accuracy : 0.5 % Output : Digital Sensor Application : alarming Type : Voltage transducer with relay Usage : alarming Product Type : DC Voltage transducer wtith reoly Material : ABS (Flam retardancy) Dimension (L*W*H) : 116*25*42 Millimeter (mm) Operating Temperature : 2060 Celsius (oC)

Send Inquiry

Single Phase AC Current Transducer with Relay Signal Output GS-AI1C1-JxKC Minimum Order Quantity : 1 Accuracy : 0.5 % Output : Switching Transducer Application : alarm Type : Switching transducer Usage : alarm Product Type : switching transducer Material : ABS flame retardant Dimension (L*W*H) : 116*25*87 Millimeter (mm) Operating Temperature : 2060 Celsius (oC)

Send Inquiry

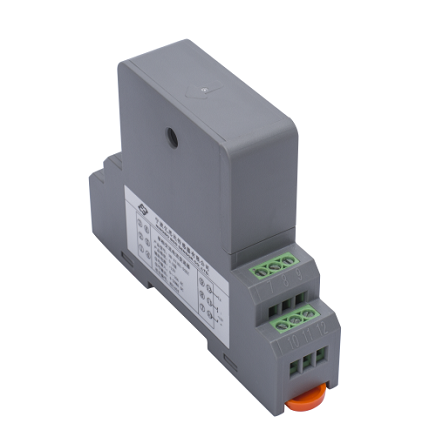

Single Phase AC Current Transducer with Relay Signal Output GS-AI1C1-JxEC Minimum Order Quantity : 1 Accuracy : 0.5 % Output : Switching Transducer Application : alarm Type : Switching transducer Usage : alarm Product Type : switching transducer Material : ABS flame retardant Dimension (L*W*H) : 116*25*87 Millimeter (mm)
