Split Core Single Phase AC Current Transducer GS-AI1B1-xxPC

Product Details:

Application measuring current
Material ABS( flame retardancy)
Product Type AC current transducer
Usage measuring current
Dimension (L*W*H) 83*100*36 Millimeter (mm)
Output Analog Sensor,
Theory Current Sensor,
Share Your Product:

Get a Price/Quote

Request To Call Back Send Inquiry

Split Core Single Phase AC Current Transducer GS-AI1B1-xxPC Price And Quantity

Minimum Order Quantity 1 Unit

Split Core Single Phase AC Current Transducer GS-AI1B1-xxPC Product Specifications

Accuracy 0.5 %
Output Analog Sensor
Usage measuring current
Dimension (L*W*H) 83*100*36 Millimeter (mm)
Material ABS( flame retardancy)
Application measuring current
Product Type AC current transducer
Theory Current Sensor
Type AC Current Transducer

Split Core Single Phase AC Current Transducer GS-AI1B1-xxPC Trade Information

FOB Port Shenzhen
Payment Terms Telegraphic Transfer (T/T), Paypal, Western Union, Letter of Credit at Sight (Sight L/C),
Supply Ability 50000 Unit Per Month
Delivery Time 2-3 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy,
Main Export Market(s) Western Europe, Australia, Eastern Europe, Middle East, Central America, South America, Asia, North America,
Main Domestic Market All India,
Certifications ISO, CE, ROHS

Product Description

Split Core Single Phase AC Current Transducer GS-AI1B1-xxPC

Overview
GS-AI1B1-xxPC series is a split core single phase AC current transducer which detects AC current flowing in a live wire in electrical system and outputs a signal proportional to that measured current. The generated signal can be analog signal 0-5V DC,0-10V DC,0-20mA DC,or 4-20mA DC for output; The generated signal can be connected to PLC,ammeter or industrial automation control system;
The advantage of this model is that transducer can be installed conveniently without stopping running the equipment.The measuring range can be up to 1000A AC;

Accuracy:0.5%;

Input:30-1000A AC;

Output:0-5V DC,0-10V DC,0-20mA DC,4-20mA DC;

Power supply:12V DC,15V DC,24V DC;

For more details,please visit our websitebelow

https://syncmeter.com/products/ac_current_transducer/single_phase/%7B189.html

Other Products in 'AC Current Transducer' category

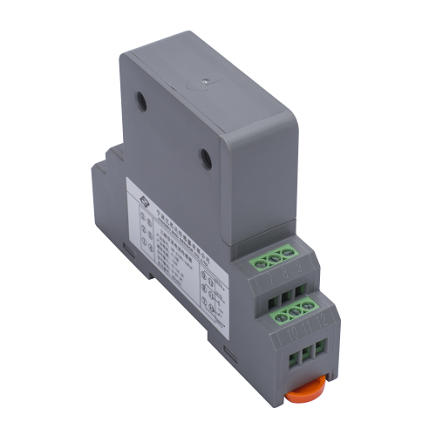

2 Phase AC Current Transducer Model:GS-AI2B1-xxEC Minimum Order Quantity : 1 Application : measuring current Material : ABS (flame retardancy) Type : AC Current Transducer Theory : Current Sensor Accuracy : 0.5 % Dimension (L*W*H) : 116*25*87 Millimeter (mm) Output : Analog Sensor Usage : measuring current Product Type : AC current transducer

Send Inquiry

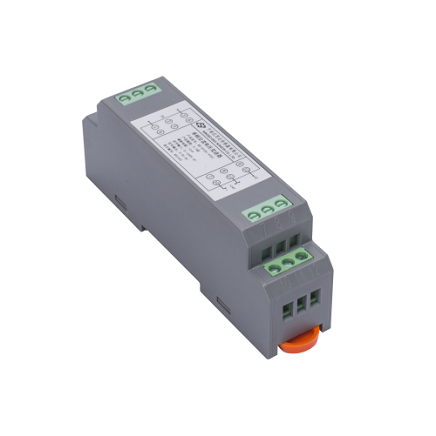

Single Phase AC Current Transducer Model GS-AI1B1-xxSC Minimum Order Quantity : 1 Application : measuring current Material : ABS (flame retardancy) Type : AC Current Transducer Theory : Current Sensor Accuracy : 0.5 % Dimension (L*W*H) : 87*25*42 Millimeter (mm) Output : Analog Sensor Product Type : ac current transducer

Send Inquiry

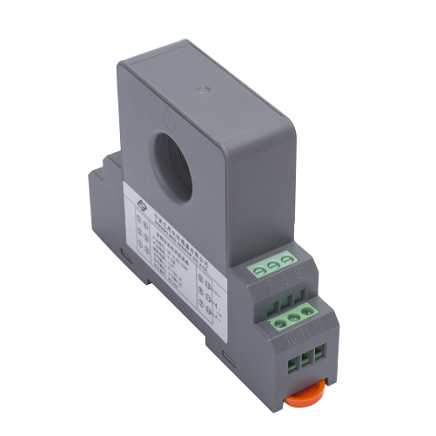

Single Phase AC Current Transducer Model GS-AI1B1-xxKC Minimum Order Quantity : 1 Application : measuring current Material : ABS (flame retardancy) Type : AC Current Transducer Theory : Current Sensor Accuracy : 0.5 % Dimension (L*W*H) : 116*87*25 Millimeter (mm) Output : Analog Sensor Usage : measuring current Product Type : CURRENT SENSOR

Send Inquiry

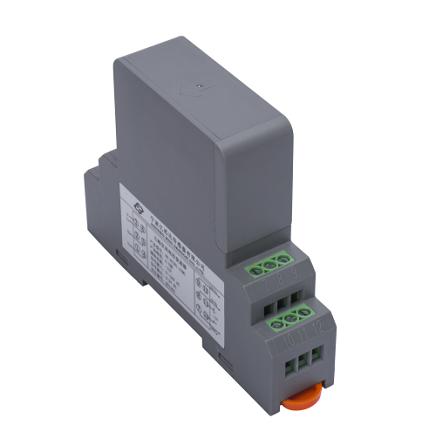

3 Phase AC Current Transducer Model:GS-AI3B1-xxMC Minimum Order Quantity : 1 Application : measuring current Material : ABS (flame retardancy) Type : AC Current Transducer Theory : Current Sensor Accuracy : 0.5 % Dimension (L*W*H) : 116*25*87 Millimeter (mm) Output : Analog Sensor Usage : measuring current
